The Yamaha MGX16V and MGX16 digital mixers share identical audio mixing capabilities, physical fader layouts, and audio I/O configurations. The primary difference is the MGX16V’s inclusion of a dedicated HDMI-USB video interface, which enables simultaneous video capture and pass-through. This addition requires a faster USB connection and adds a slight amount of weight to the mixer.

Here is a chart listing the major differences:

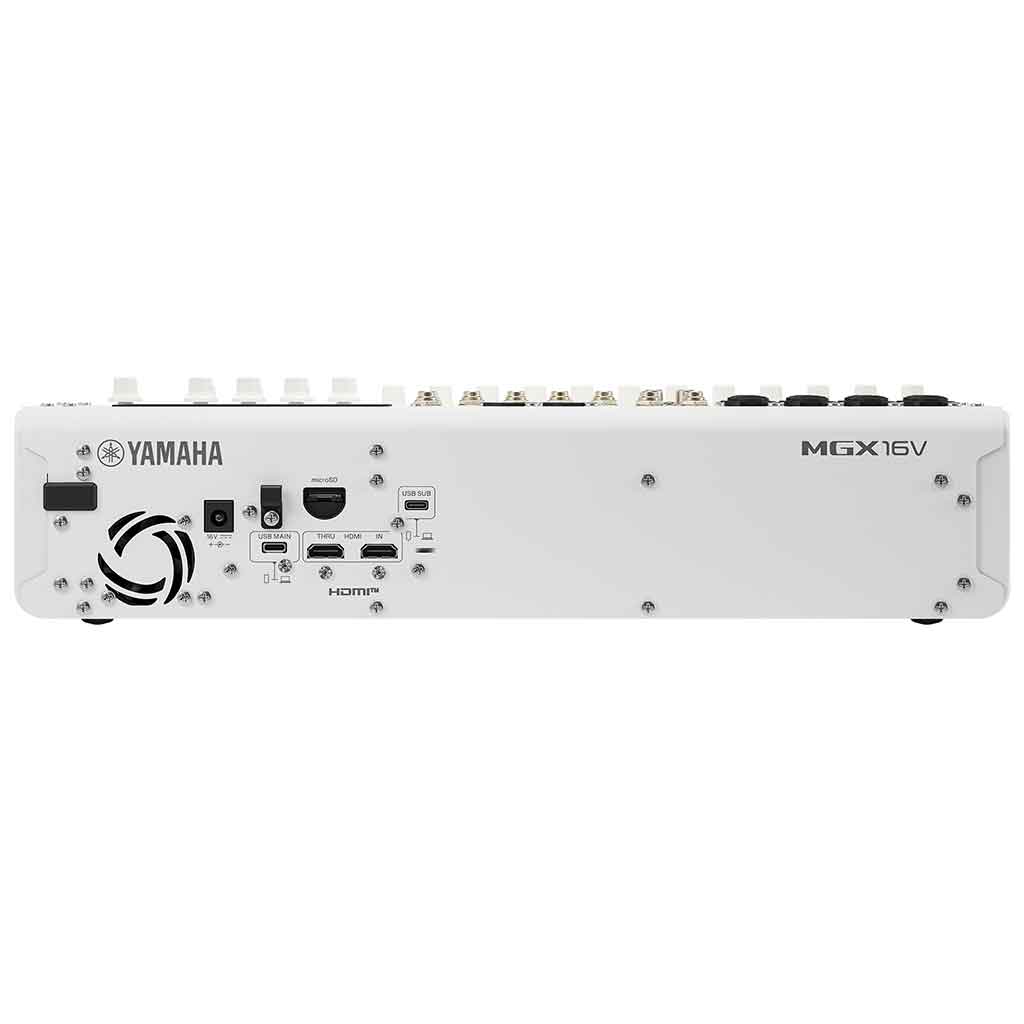

• HDMI Integration (MGX16V Only): The MGX16V features an HDMI IN port (for cameras or game consoles) and an HDMI THRU port (for monitors)
. It can capture video up to 4K (60 fps) and send it to a computer via USB, allowing for synchronized audio/video streaming without a separate capture card
. The standard MGX16 handles audio only.
• USB Connection Requirement: To handle the high bandwidth of video data, the MGX16V requires a Super Speed (USB 3.0) connection. The standard MGX16 operates on High Speed (USB 2.0) or higher
• Weight: Due to the internal video hardware, the MGX16V weighs 10.8 lbs., while the standard MGX16 is lighter at 10.3 lbs.

The Yamaha MGX16V digital mixer delivers professional audio mixing in a fast and intuitive format, built for live sound, streaming, recording, and content creation.  The MGX Series is a digital evolution of an analog classic, combining advanced digital processing with Yamaha’s trusted MG legacy mixers. It's ideal for musicians, venues, businesses, and creators who require reliable, high-quality results.

• Business users needing reliable, flexible audio solutions for presentations, events, and installed systems

• Musicians and sound engineers seeking professional sound quality for live performance and recording

• Lifestyle creators, including gamers and IRL streamers, who require seamless audio and video integration

Why Choose Yamaha MGX Compact Digital Mixers?
The Yamaha MGX digital mixing boards stand out for their balance of power, reliability, and ease of use, making them an ideal choice for both professionals and fast-paced production environments.

Key advantages include:

• Intuitive, fast operation with customizable pads and control knobs

• Essential physical inputs and outputs for maximum versatility

• Dual USB audio interfaces for flexible routing and recording

• Bluetooth® audio input for wireless playback and integration

• Built-in DSP for professional sound and latency-free monitoring

The Yamaha MGX16V compact digital audio mixer is designed to make mixing easy and raise the bar for affordable, professional digital mixing consoles. It's ideal for mixing, recording, and streaming, with almost endless possibilities.

MGX16V Highlights

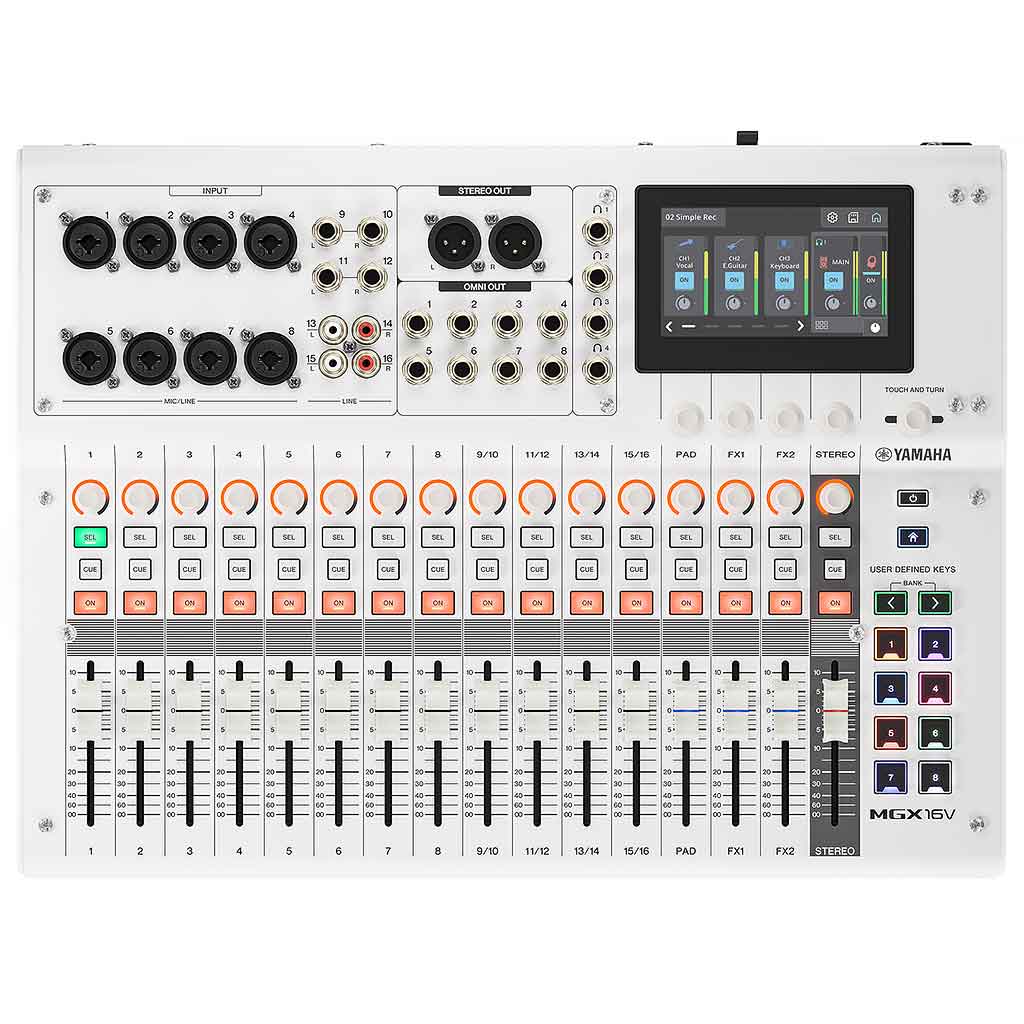

• 15 + 1 non-motorized faders

• Up to 22-track recording/playback via USB

• Compact footprint with powerful digital features
• Built-in DSP with EQ, dynamics, and effects

• Latency-free monitoring

• microSD card recording and playback

• Bluetooth® audio input
• Bundled with Cubase AI, WaveLab Cast LE, and MixKey

The new Yamaha MGX16V Series digital mixers are available in two colors: black (MGX16VB) and white (MGX16VW). They are gig-ready and player-approved, and deliver performance, convenience, and reliability that are head and shoulders above the rest. Contact Andy's Music and order yours today.

Yamaha MGX16V Digital Mixer Specs

• USB MAIN: 22 inputs / 22 outputs (32-bit / 96 kHz)
• USB SUB: 2 inputs / 2 outputs (16-bit / 48kHz)
• Input channels: 8 mono, 4 stereo, 1 Sound Pad, and 2 FX returns
• 8 mix busses, 2 FX busses, 1 CUE, 1 stereo bus
• Local I/O: 8 Mic/Line (8 XLR/TRS Phone Combo), 8 Line (4 TRS Phone, 4 RCA) inputs, and 2 XLR, 8 TRS Phone, 4 Headphones
• Dual USB-C audio interface, separate main and sub
• 4.3" touchscreen with touch and turn control knobs

• Versatile I/O (New MGX preamps with 86 dB gain range,
• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
• HDMI-to-USB video/audio input with capture function and real-time HDMI
  passthrough
• Built-in DSP processor for professional sound and latency-free monitoring

• Assistive features: Simple/Standard Mode, Auto Gain, Clip Safe, Scene Recall

• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card (Cubase AI, WaveLab Cast LE, Basic FX Suite, Steinberg Plus), AC Power Adapter (PA-300C)
• System requirements: macOS 14.x or 15.x, Windows 10 or 11, minimum 4 GB RAM, USB Type-C connection

• Dimensions: 13.2" L x 3.8" H x 12.5" W

• Weight: 8.6 lbs.

• Colors: Black MGX16VB, White MGX16VW
• Other available models: MGX12, MGX12V, MGX16.
