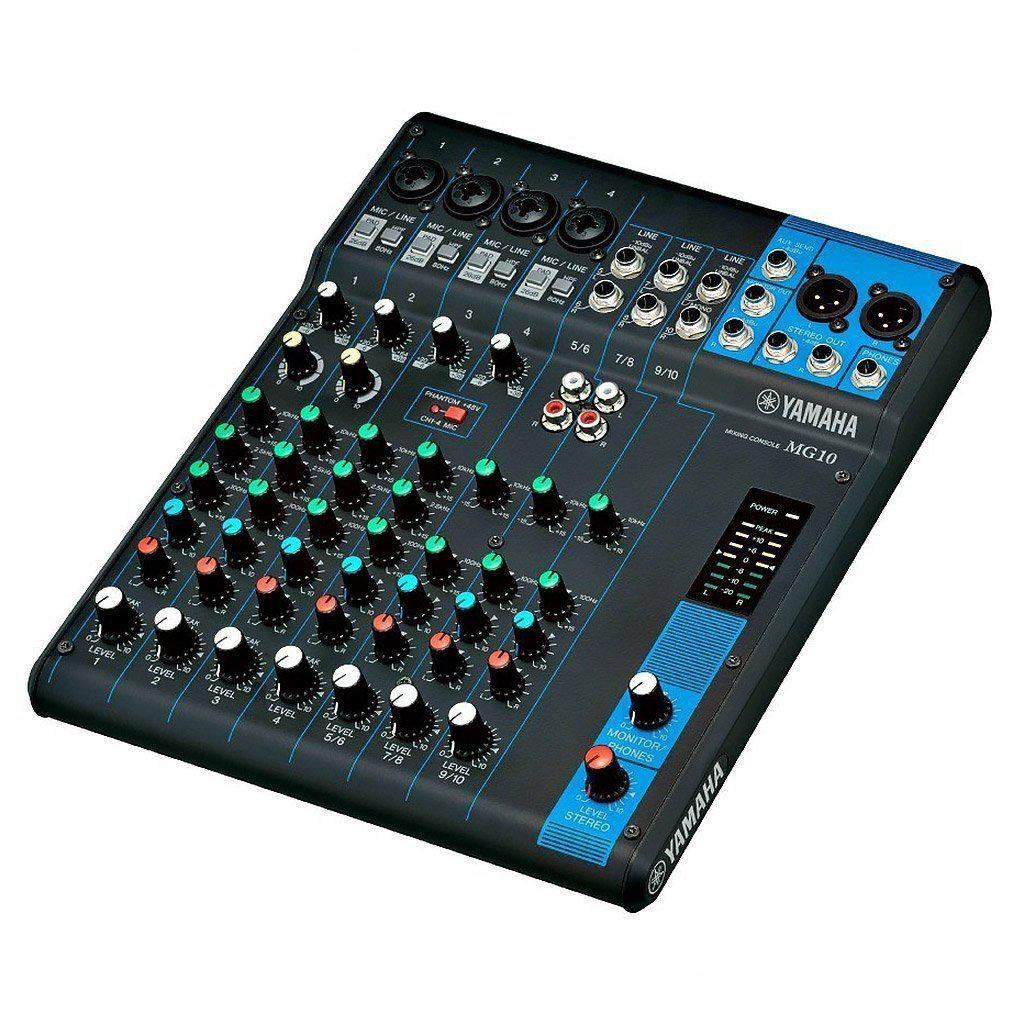

The Yamaha MG10 mixer is a 10-channel stereo mixing console featuring studio-quality preamps, one-knob compression, and a rugged, metal chassis. The MG10 incorporates some of the same technologies developed for use in Yamaha's high-dollar professional mixing desks.

Class-A Mic Preamps
D-Pre preamps in the MG10 Yamaha mixer are studio-grade, and deliver natural-sounding bass and smooth highs, with very low distortion. They have a wide frequency range that can handle signals from almost any signal source without amplifying unwanted noise.

Op-Amp Integrated Circuits
The MG10 mixer has custom-made MG01 op-amps that were developed in cooperation with the manufacturer to focus on signal quality as the most important component.

Switchable Phantom Power
With phantom power, the Yamaha MG Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones. The PAD Switch attenuates high input signals and helps to avoid clipping that can seriously affect your mix.

One Knob Compression
One knob compressors are a Yamaha innovation and now have become an industry standard. It gives you instant access to optimize compression with a single rotary knob.

Other important features of the MG 10 mixer include 3-band equalizers for precise control and high-pass filters to eliminate low-frequency noise; AUX effect sends to add external digital processors; a variety of input/output connectors including Neutrik XLR jacks; and it's all wrapped up in a metal chassis with an internal power supply to give you worry-free operation.

The Yamaha MG10 mixer can be used for church installs, recording, or live music settings. The solid construction and flexible design continually deliver peak performance, sonic purity, and reliability unrivaled in its class. And most importantly, it's built to last.

Yamaha MG10 Mixer Specs

• MG Series Consoles
• 10-Channel Mixing Console
• Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
• 1 Stereo Bus
• 1 AUX (incl. FX)
• D-PRE mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Metal chassis
• MG10 Dimensions: W x H x D 9.6"x 2.8"x 11.6"
• Net Weight: 4.19 lbs.
